Description

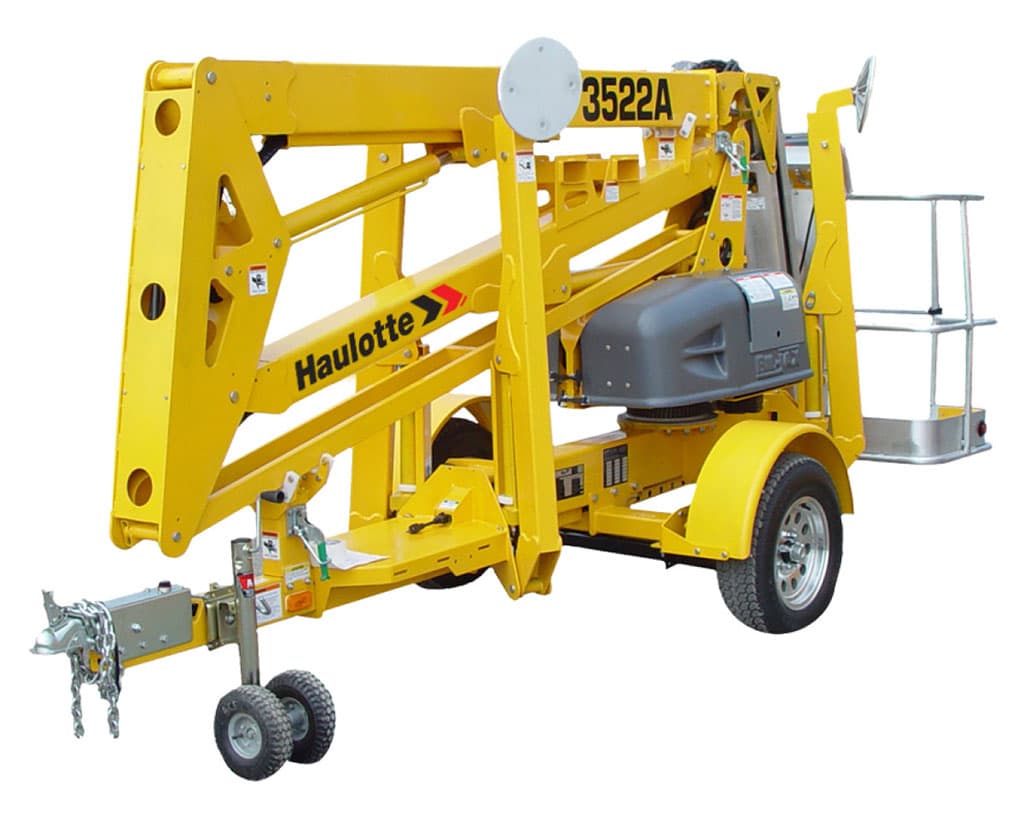

3522 A With a working height of 41 feet and useable both indoors and outdoors, the 3522 A trailer mounted boom is the most popular type of platform with skilled tradesmen and local communities. The compact and lightweight design make them towable to any site, no CDL required. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Working height
41 ft 9 in
Platform height
35 ft 9 in
Horizontal outreach (from centerline)
22 ft 6 in
Horizontal outreach (from edge of footpad)
17 ft 5 in
Up and over height
19 ft
Lift capacity
500 lb
Length - stowed
16 ft 3 in
Width stowed
5 ft 6 in
Height stowed
6 ft 8 in
Platform size
4 ft 1 in x 2 ft 9 in
Widest Point
11 ft 10 in
Widest Point
12 ft 2 in
Turntable rotation
350° non-continuous
Jib - length
4 ft 3 in
Jib - Vertical Motion
150° (+70 / - 80)
Tow speed rating
65 mph
Leveling capability
12.5 °
Tire size
ST 225 / 75 D15
Power source
4 x 6 V 245 amp-hr
Tongue weight (no options)
245 lb
Weight (no options)
3,400 lb
