Description

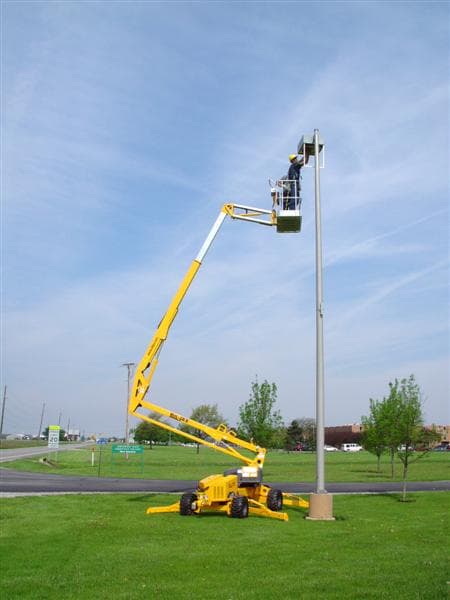

45 XA One of the most versatile machines in the industry: these lightweight self-propelled lifts have a working height of 51 feet and low ground pressure for sensitive surfaces such as landscaping, concrete and interior uses. Hydraulic outriggers set-up in less than 30 sec for safe work on uneven ground.
Specifications
Access like never before
- Hydraulic outriggers and automatic leveling allow operation in under 30 seconds
- High performance 4WD and light weight provide access to places larger and heavier machines cannot go
- Easily transported on a trailer with no commercial driver’s license requirement
- Dual power source (DC / Gas) allows for indoor/outdoor use
Optimum performance
- 4,000 Watt generator
- Air / water lines to platform
- 110V GFI protected power to the platform
Working height
51 ft
Platform height
45 ft
Horizontal outreach (from centerline)
27 ft
Horizontal outreach (from edge of footpad)
21 ft
Up and over height
20 ft 9 in
Lift capacity
500 lb
Length - stowed
18 ft 2 in
Width stowed
5 ft 6 in
Height stowed
6 ft 7 in
Wheelbase
8 ft 9 in
Ground clearance
6 in
Platform size
5 ft x 2 ft 6 in
Outrigger footprint
12 ft 4 in x 11 ft 4 in
Turntable rotation
350° non-continuous
Jib - length
4 ft 3 in
Jib - Vertical Motion
150° (+70 / -80)
Drive speed
4 mph (max)
Gradeability
45%
Turning radius - inside (2WS)
10 ft
Turning radius - inside (4WS)
5 ft 4 in
Tire size
26 x 12 Bar lug
Batteries
4 x 6V 260 Amp-hr
Engine
26.5 hp gas
Weight
5,200 lb
