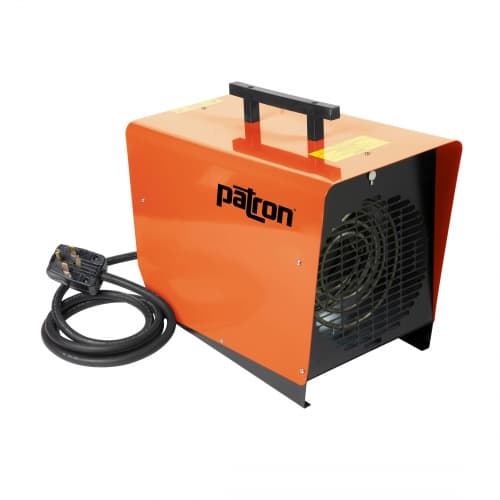

Patron model E6

MODEL E6, Electric heater, 6 kW, 24 A, 240 V. The Patron E6 is the newest addition to the Patron range. Built to the same quality and durability as every other Patron heater, it offers many ways to be used. The E6 is a 240 V unit drawing 24 amps, so it runs perfectly from a standard dryer outlet. Make sure your outlet is NEMA 14-30 to match our plug. The E6 produces intense heat and spreads it over large areas.

FEATURES: Heats, dries and ventilates. Built-in room thermostat, 0 °C to 38 °C. Overheat protection at 40 °C. Rugged powder-coated steel housing. Stainless-steel sheathed heating coils. Fast, high temperature rise thanks to the unidirectional fan. User-friendly and reliable. Runs on 208 V.

SPECIFICATIONS: Heat output 20,500 BTU/h. Voltage 240 V (single phase). Current 24 A. Power 6,000 W. Airflow 250 CFM. Cord length 3 m (8 AWG). Plug type NEMA 14-30P. Noise level 55 dB(A) at 1 m. Weight 14.9 kg. Dimensions 50.8 cm x 30.5 cm x 17 in. Warranty 2 years. Certification UL/cUL. Maximum cable length: 30.5 m (8 AWG, 3-wire, SOOW).
