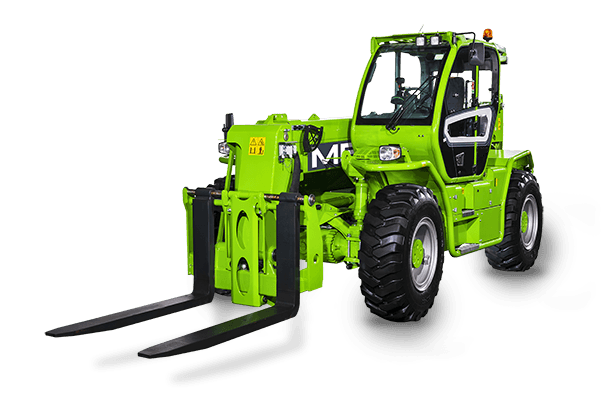

MERLO - P120.10HM high-capacity telehandler

High-capacity telehandlers

P120.10HM, Always top of the class

Capacity

25000

Lift height

32' 0"

Maximum power

170

The best workplace

Comfort

A new design puts function and comfort first, grouping driver information and the controls for the various systems and devices to maximize ergonomics. The steering-wheel shuttle lever is also duplicated on the joystick. For simple, easy cab access, the door on Merlo telehandlers opens to a full 180°. The inside of the door also carries a large grab handle to help the operator in and out of the cab. Developed to automotive standards, it halves heating and cooling times compared with a conventional air-conditioning system. The intake nozzle sits on the side door, away from potential sources of dust and dirt, while the interior has 8 vents. P120.10HM

Expand all

Unladen weight (lb) 35715. Maximum capacity (lb) 25000. Lift height (ft) 32' 0". Maximum reach 17' 5". Lift height at maximum reach 25' 5". Reach at maximum reach 5' 0". Capacity at maximum lift height (kg) 10000. Capacity at maximum reach (kg) 6000. Boom side-shift (mm) +/- 7.3. Frame levelling (%) +/- 8. Boom sections 2.
