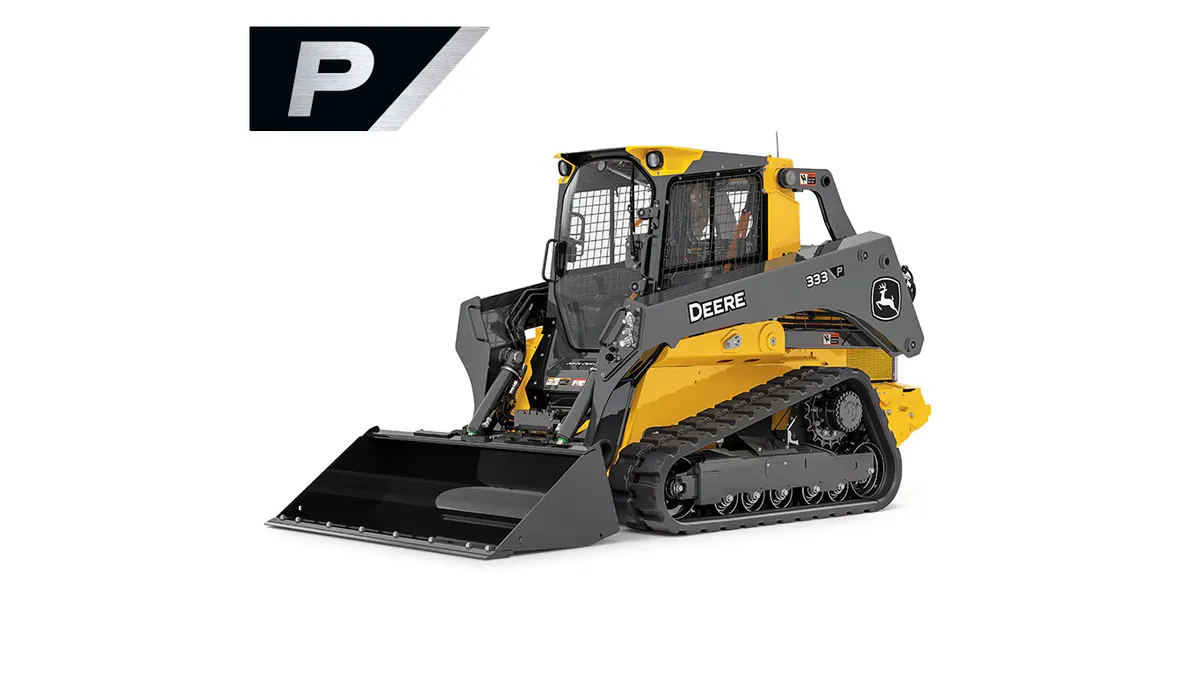

John Deere - 333 P-Tier

John Deere · 333 P-Tier

John Deere 333 P-Tier 105.8 hp compact track loader, 1,748 kg rated operating capacity, 4,994 kg tipping load.

Available at

Saint-Zotique · Île-Perrot

Call

Description

DIMENSIONS, Length, without bucket, mm (in.) 3170 (125). Length, with bucket, mm (in.) 3840 (151.2). Width, without bucket, mm (in.) 2000 (78.9). Height, top of cab, mm (in.) 2200 (86.7). Ground clearance, mm (in.) 250 (9.8). Rear departure angle, degrees 30. Height to hinge pin, mm (in.) 3350 (132). Dump angle, degrees 48. Dump height, maximum, mm (in.) 2690 (106.1). Rollback at ground level, degrees 35.

CAPACITIES, Fuel tank, litres (US gallons) 136.3 (36).

PERFORMANCE, Tipping load, kg (lb) 4994 (11,000). Ground pressure, kPa (PSI) 32.8 (4.8). Maximum speed, km/h (mph) 13.7 (8.5). Breakout force, kN (lbf) 37.8 (8,500). Bucket breakout force, kN (lbf) 61.2 (13,750). Hydraulic power, kW (hp) 38 (51.1). Hydraulic power (optional), kW (hp) 67 (89.9). Pump flow, L/min (US gal/min) 95 (25). Pump flow (optional), L/min (US gal/min) 167 (44). System pressure, bar (PSI) 241.3 (3,500). Operating weight, kg (lb) 5,531 (12,183).
