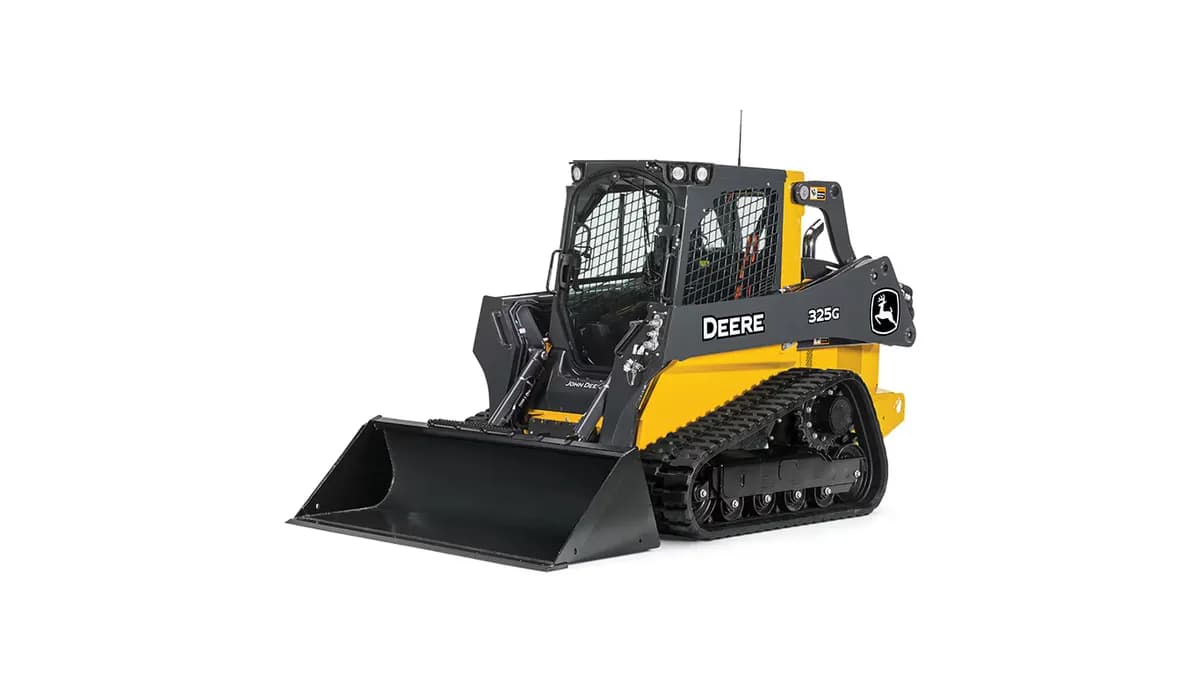

John Deere - 325G

DIMENSIONS, Length, without bucket, mm (in.) 2850 (112.3). Length, foundry bucket, mm (in.) 3460 (136.3). Width, without bucket, mm (in.) 1820 (71.5). Height, top of cab, mm (in.) 2060 (81.1). Ground clearance, mm (in.) 240 (9.3). Rear departure angle, degrees 30.5. Height to hinge pin, mm (in.) 3200 (126.1). Dump angle, degrees 41. Dump height, foundry maximum, mm (in.) 2590 (102.1). Rollback at ground level, degrees 34.

CAPACITIES, Fuel tank, litres (US gallons) 79 (21).

PERFORMANCE, Rated operating capacity, foundry, kg (lb) 1176 (2,590). Tipping load, foundry, kg (lb) 3360 (7,400). Ground pressure, foundry, kPa (PSI) 39.3 (5.7). Maximum speed, km/h (mph) 13.2 (8.2). Lift breakout force, foundry, kN (lbf) 23.3 (5,250). Bucket breakout force, foundry, kN (lbf) 38.9 (8,750). Hydraulic power, kW (hp) 30.617 (41). Hydraulic power, optional, kW (hp) 47.103 (63.1). Pump flow, L/min (US gal/min) 78 (21). Pump flow, optional, 120 L/min. System pressure 237.87 bar (3,450 PSI). Operating weight, foundry, 4,313 kg (9,500 lb).
