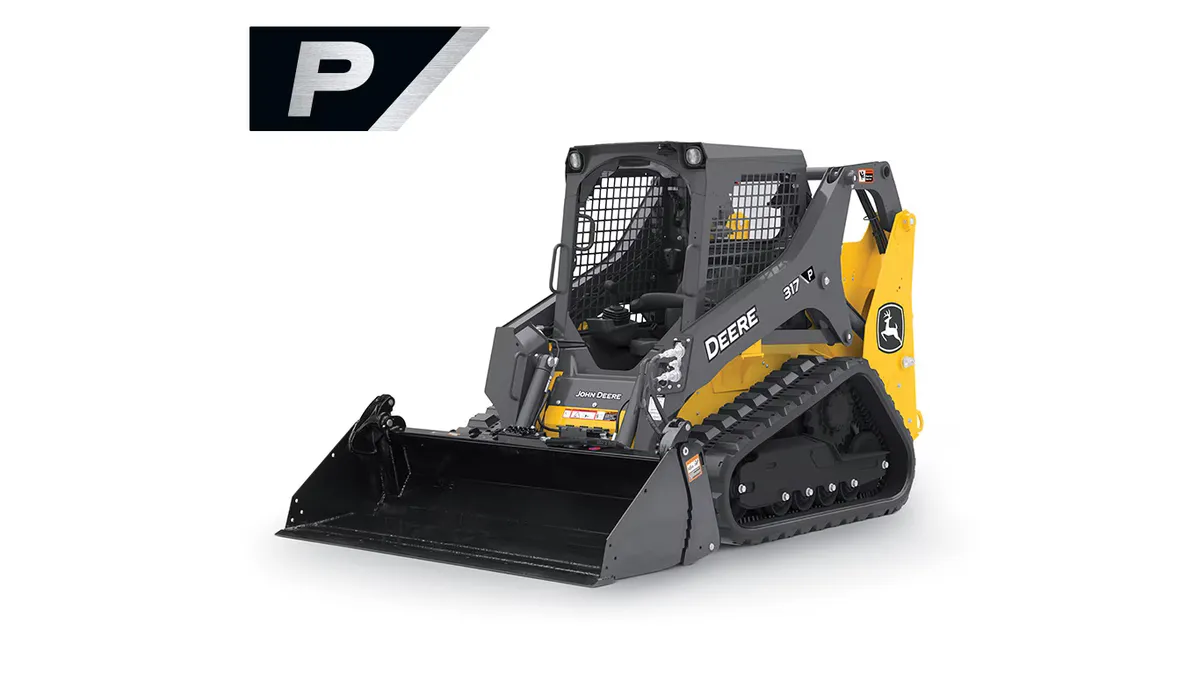

John Deere - 317 P-Tier

ENGINE, Manufacturer: Yanmar. Model: 4TNV86CHT. Aspiration: turbo. Displacement: 2.1 L. Rated speed: 2,600 rpm. Net power, kW (hp): 45.6 (61). Gross power, kW (hp): 48.5 (65). Torque, Nm (lb-ft): 207 (153). Track width, mm (in.): 320 (12.6).

DIMENSIONS, Length without bucket, mm (in.): 2630 (103). Length with bucket, mm (in.): 3240 (127.6). Width without bucket, mm (in.): 1650 (65.1). Height to top of cab, mm (in.): 1980 (78). Ground clearance, mm (in.): 190 (7.4). Rear departure angle, degrees: 32.3. Height to hinge pin, mm (in.): 3070 (121). Dump angle, degrees: 42. Dump height, maximum, mm (in.): 2430 (95.6). Rollback at ground level, degrees: 30. Fuel tank, litres (US gallons): 71 (19).

PERFORMANCE, Tipping load, kg (lb): 2756 (6,070). Ground pressure, kPa (PSI): 38 (5.5). Maximum speed, km/h (mph): 11.3 (7). Lift breakout force, kN (lbf): 23 (5,250). Bucket breakout force, kN (lbf): 27 (6,000). Hydraulic power, kW (hp): 25 (33). Pump flow, L/min (US gal/min): 63 (17). System pressure, bar (PSI): 237.87 (3,450). Operating weight, kg (lb): 3824 (8,423).
