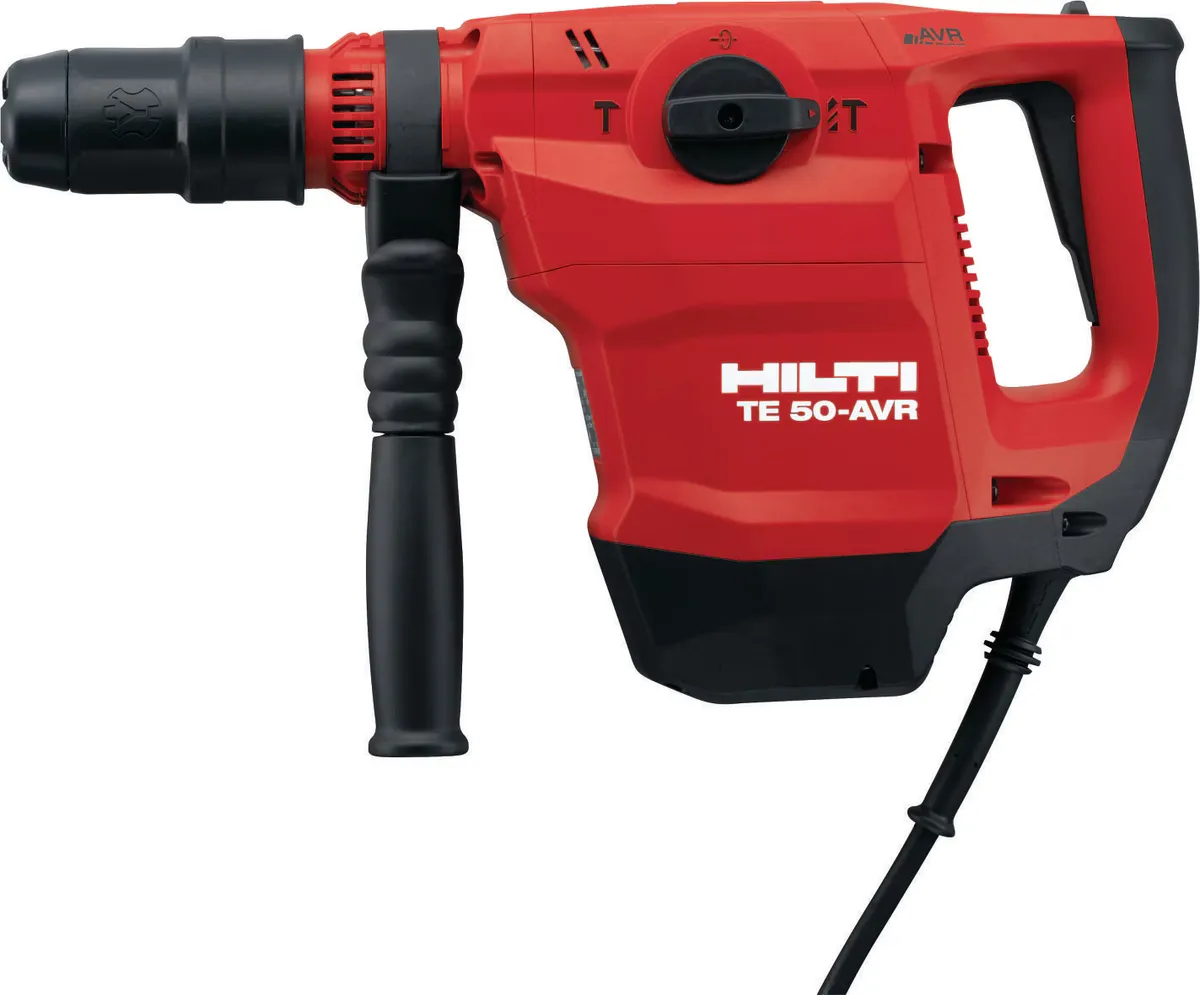

HILTI - TE 50-AVR rotary hammer

Our most compact SDS Max (TE-Y) rotary hammer; light for greater comfort and control when drilling and chiselling in concrete, stone and masonry

Weight without battery, calculated to EPTA procedure 01/2003: 13.4 lb

Weight class: 11 lb

Single impact energy: 4.4 ft-lb

Features

Exceptionally light and versatile SDS Max (TE-Y) rotary hammer

Low contact pressure for greater comfort in use

Active vibration reduction (AVR) makes the tool easier to use and helps increase daily productivity

The optional DRS-Y dust removal system captures up to 95 % of the dust

Detachable power cord for quick, easy replacement of damaged or broken cords on the job site

Applications

Light to medium chiselling in masonry and concrete

Hammer drilling in concrete, masonry and natural stone. Usable with bits 1/2 in. to 2 in. in diameter; recommended use: 5/8 in. to 1 1/4 in. diameter

Penetrations in masonry (primarily) with percussion core bits. Usable with bits 1 3/4 in. to 5 15/16 in. in diameter; recommended use: up to 3 1/4 in. diameter

Technical data

Weight without battery, calculated to EPTA procedure 01/2003: 13.4 lb. Weight class 11 lb. Single impact energy 4.4 ft-lb. Hammer drilling diameter range 15/32 to 3-7/32 in. Optimal hammer drilling range 5/8 to 1-3/8 in. Hammer drilling speed 360 rpm. Total impact rate 3,510 impacts/minute. Features: active vibration reduction (AVR), chipping, depth gauge. Triaxial vibration value drilling in concrete (ah, HD) 8.8 m/s². Dust removal systems available: TE DRS-Y, TE DRS-D, TE DRS-BK. Triaxial vibration for chipping in concrete 7.1 m/s². Rated power 1,100 W. A-weighted emission sound power level 108 dB (A). A-weighted emission sound pressure level 100 dB (A).
